I recently switched to a self-hosted Headscale instance for my homelab, as I don’t like to be dependent on a central service (Tailscale) for connectivity between my devices.

The issue#

I consider myself pretty paranoid (as you should be), so I like to be connected to Mullvad VPN at all times. To make the Mullvad standalone app and Tailscale work together nicely, I had to use a hacky nftables rule to tell Mullvad to pass-through all traffic from Tailscale, by marking it with a special “tracking mark” — you can read more about this on Mullvad’s site.

table inet mullvad_tailscale {
  chain output {
    type route hook output priority 0; policy accept;
    ip daddr 100.64.0.0/10 ct mark set 0x00000f41 meta mark set 0x6d6f6c65;
  }
}

This works fine on my desktop and laptop, but how can you use Tailscale and Mullvad simultaneously on mobile? Android only supports one connected VPN at a time, and it would also be nice to get rid of the standalone Mullvad app on desktop and just connect to the relays directly, without the nftables hack.

Doing some research#

While scouting the Headscale repo, I stumbled across issue #1545 requesting support for “Wireguard-only peers,” exactly what Tailscale added to support Mullvad exit nodes.

At first the issue seemed pretty stale, but coincidentally a PR was just recently opened to implement this feature. The developer said they’ve been using this feature for a while already & it sounded pretty feature-complete, so I decided to give it a try.

If you’re on NixOS, making use of this pull request is as easy as …

{ pkgs, ... }: {
  services.headscale = {
    # ...
    package = pkgs.headscale.overrideAttrs (_: {
      src = pkgs.fetchFromGitHub {
        owner = "iridated";
        repo = "headscale";
        rev = "wireguard-only-peers";
        hash = ""; # build once to get the hash
      };

      vendorHash = ""; # build once to get the hash
    });
  };
}

How to (the manual way)#

First, I’ll cover the rather painful manual way to create a Mullvad Wireguard-only node in your tailnet. I assume you already have some basic knowledge about Headscale and its CLI interface.

If you don’t care about how this works behind the scenes, you can just do it the automatic way.

1. Pick a relay and add it to Headscale#

You can search for relays on Mullvad’s site.

RELAY_PUBLIC_KEY=zOBWmQ3BEOZKsYKbj4dC2hQjxCbr3eKa6wGWyEDYbC4=
RELAY_IPV4=176.125.235.73
RELAY_IPV6=2a02:20c8:4124::a03f

USER_ID=1234
NODE_NAME=cool-node-name

To make my life easier I’ll use this function to convert a Wireguard key to a Tailscale nodekey, which the Headscale CLI interface expects.

wg2ts() {
    echo "nodekey:"$(echo "$1" | base64 -d 2>/dev/null | od -An -tx1 | tr -d ' \n')
}

Now, let’s create the Wireguard node in the tailnet. This makes the Mullvad relay known to Headscale, but I can’t really do anything with it yet.

$ headscale node register-wg-only \
    --name $NODE_NAME \
    --user $USER_ID \
    --public-key "$(wg2ts $RELAY_PUBLIC_KEY)" \
    --allowed-ips "0.0.0.0/0, ::/0" \
    --endpoints "$RELAY_IPV4:51820, $RELAY_IPV6:51820" \
    --extra-config '{"suggestExitNode": true}'

WireGuard-only peer $NODE_NAME registered (allocated IPs: ..., ...). Use 'nodes add-wg-connection' to connect nodes.

I’ll use this command to figure out the ID of our Wireguard node, as the above command doesn’t echo it. Save this as WIREGUARD_NODE_ID for later use.

$ headscale node list -o json \
    | jq -r ".wireguard_only_peers[] | select(.name == \"$NODE_NAME\") | .id"

100000001

2. Register a Tailscale device with Mullvad to allow authentication with relays#

To actually make use of the added Mullvad relay, I’ll first have to make it known to Mullvad using their API.

MULLVAD_ACCOUNT=1234567890123456
NODE_ID=5678
NODEKEY=$(headscale node list -o json | jq -r ".nodes[] | select(.id == $NODE_ID) | .node_key")

Now the other way around: Mullvad expects you to register a Wireguard public key, so I’ll use yet another function to convert the nodekey to one.

ts2wg() {
    hex="$(echo "$1" | sed 's/^nodekey://i; s/[^0-9a-fA-F]//g')"
    printf '%b' "$(echo "$hex" | sed 's/../\\x&/g')" | base64 | tr -d '\n'
    echo
}

Let’s register the device with Mullvad now. This makes the Wireguard public key of the chosen device known to Mullvad and allows my device to connect to their relays.

$ curl -sSL \
    https://api.mullvad.net/wg \
    -d account="$MULLVAD_ACCOUNT" \
    --data-urlencode pubkey="$(ts2wg $NODEKEY)"

10.70.37.216/32,fc00:bbbb:bbbb:bb01::7:3bf2/128

3. Create a connection to the relay#

Now that I know the IPs Mullvad wants my device to connect with, I can make the connection known to my device in the tailnet. Without these special masquerade IPs, connections to the relay would not work. The masquerade IPs are unique for each public key, so you can re-use them for other relays.

$ headscale node add-wg-connection \
    --node-id $NODE_ID \
    --wg-peer-id $WIREGUARD_NODE_ID \
    --ipv4-masq-addr $IPV4_FROM_ABOVE \
    --ipv6-masq-addr $IPV6_FROM_ABOVE

Connection created between node $NODE_ID and WireGuard peer $WIREGUARD_NODE_ID

How to (The automatic way)#

Understandably, no one wants to manually create all of the Mullvad relays by hand. I wrote a small Python script to help with maintaining these relays & “connections” to nodes.

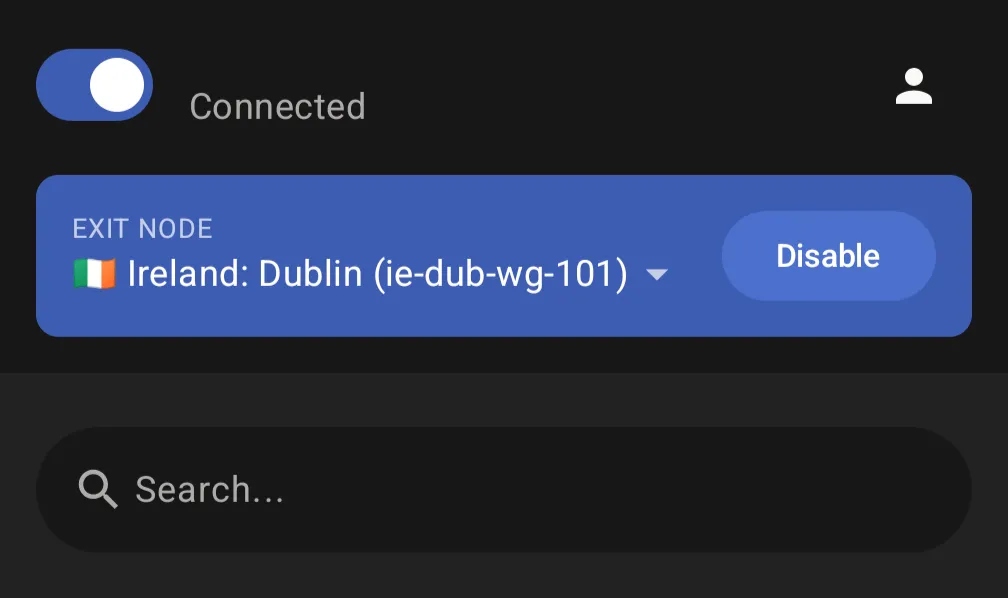

As a bonus, Mullvad relay nodes will display nicely in the mobile app using this method.

And you’re done! Now you just have to

• force-close the Tailscale mobile app & select the exit node from the drop down menu or
• restart the Tailscale daemon and tailscale set --exit-node=$NODE_NAME

Closing words#

These steps should also apply to any other VPN provider giving you direct access to the Wireguard relays. I have been daily-driving this setup for a few days now without encountering any issues. Keep in mind though, this feature is pretty much still work-in-progress and not merged into the repository yet. I’ll do my best to keep the steps up-to-date.
